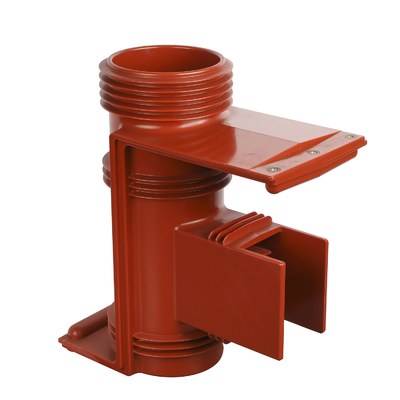

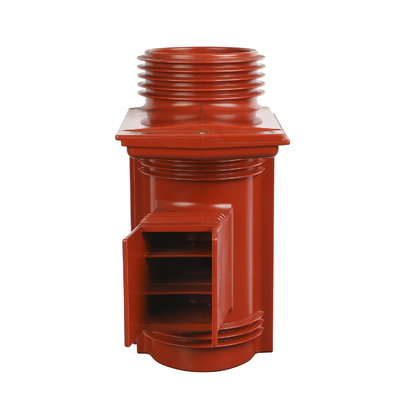

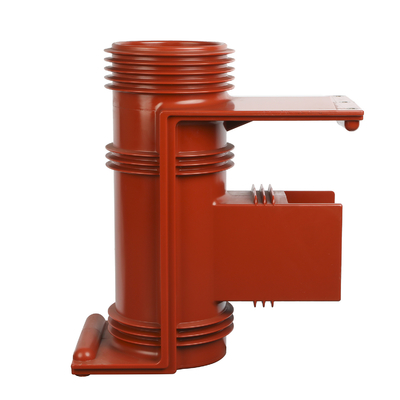

36kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear

  • 36kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear
  • 36kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear
  • 36kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear
  • 36kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear
Place of Origin WENZHOU
Фирменное наименование QIUPU
Сертификация IEC
Model Number CTH3-40.5/660/sS
Minimum Order Quantity 6
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 5000 PCS/Month

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Color Red Material Epoxy Resin
Rate Voltage 40.5kV Frequency Voltage 98 kV
Creepage Distance 810mm Flexural Strength 12 kN
Current 630A-4000A Higth 660MM
Оставьте сообщение
Характер продукции
36kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear



               Product advantages:


- APG(Automatic Pressure Gelation) technology for epoxy insulators, best choice!
- Premium epoxy resin, hardener and silicone powder, sufficient 3-speed mixing and vacuumization, eliminating bubbles
- Precise mold development, workers will strictly execute production technology requirement of solidifying time and curing time.



Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)
1 Insulators(140*320) 40.5 50 98 ≤10 ＞810 ≥10 185
2
3 Contactor box (1250A) 12 50 45 ≤10 ＞240 ≥8 80
4 Contactor box (1600A) 12 50 45 ≤10 ＞240 ≥8 80


36kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear 036kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear 136kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear 2

      1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .



       2. Especially applied to vacuum circuit breaker sealing pole column, complex, thin wall, multi-directional core extraction products are more advantageous.



      3. Mainly used in systems below 1000 KVA Transformers. The ring net ark originally serves as the ring net connection, this is the ring net ark name reason. Because it is the use of the ring network, it only needs to be divided rated current, short circuit current division does not need it(do not understand please consider carefully). So the loop cabinet just needs a load switch, not a fuse.
